The Problem

Standard single-server deployments represent a Single Point of Failure (SPOF) If a single AWS Availability Zone (AZ) down or a manual configuration error occurs, the entire application stays offline, leading to significant downtime and potential data loss. I needed to move away from "manual, fragile setups" toward a system that is decoupled, secure, and self-healing.

The Solution

I engineered a production-grade 3-tier architecture in the ap-southeast-1 (Singapore) region. The system is designed to "survive" by distributing workloads across multiple AZs and automating the recovery process. Key solutions included:

• High Availability: Distributing traffic via an ALB to an Auto Scaling Group.
• Data Durability: Utilizing RDS Multi-AZ for synchronous replication.
• Secure Networking: Isolating the Database and App tiers in Private Subnets.

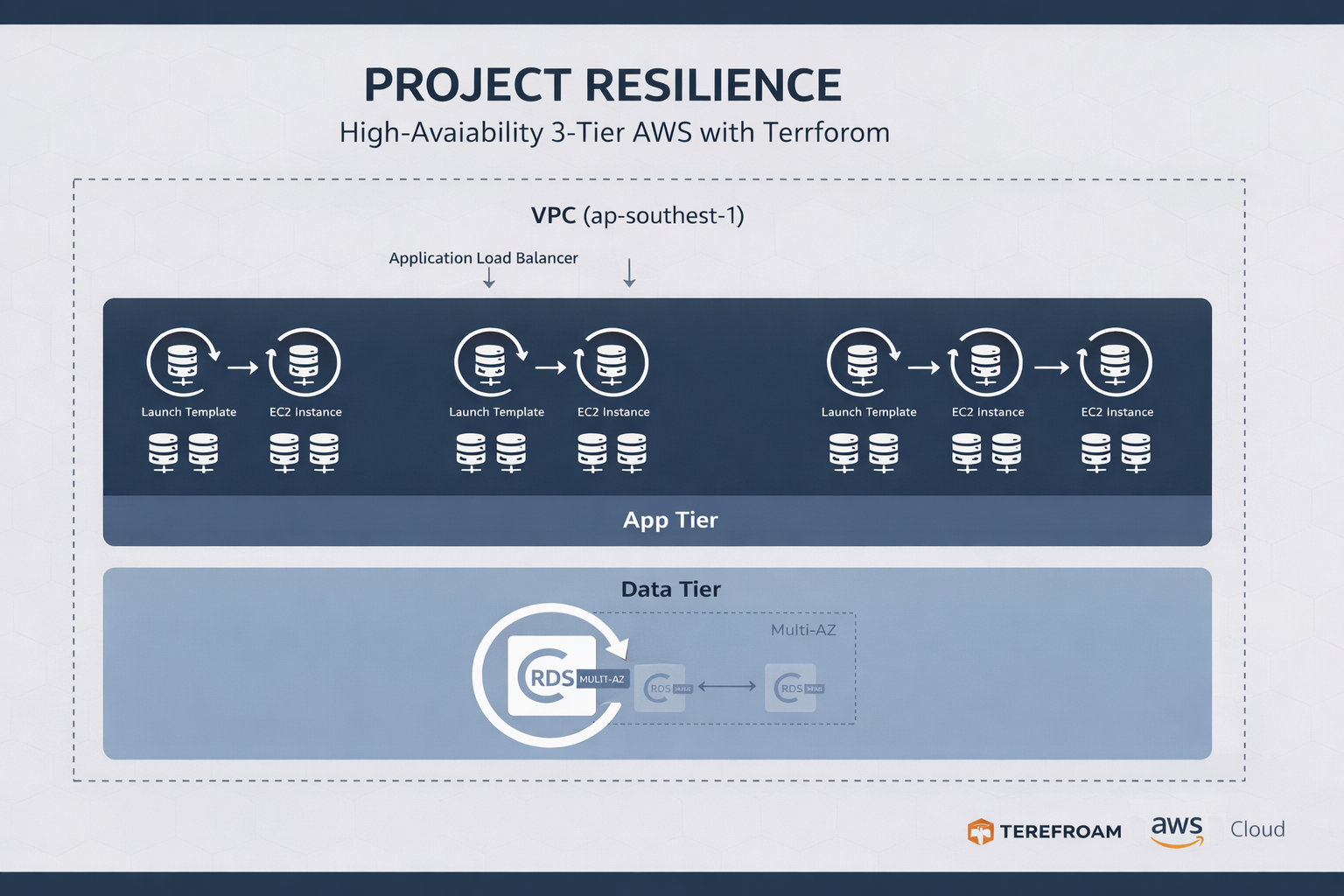

Architecture Diagram

Infrastructure as Code

Terraform configuration for the Security Group Nesting:

# The "Chain of Trust": Only the App Tier can talk to the Database
resource "aws_security_group" "db_sg" {
  name        = "database-layer-security-group"
  description = "Allow MySQL traffic from App Tier only"
  vpc_id      = aws_vpc.main.id

  ingress {
    from_port       = 3306
    to_port         = 3306
    protocol        = "tcp"
    # This is nesting: No IP addresses, just the App SG ID
    security_groups = [aws_security_group.app_sg.id]
  }
}

The Results

Technologies Used

• Cloud Provider: AWS (Region: ap-southeast-1).
• Infrastructure as Code: Terraform (~> 5.0).
• Database: MySQL 8.0 (RDS Multi-AZ).
• Compute: Amazon Linux 2023 + Apache HTTP Server.

The Problem

In modern cloud environments, relying on manual SSH to fix a crashed service is slow and does not scale. Manual intervention creates a bottleneck, increases Mean Time To Recovery (MTTR), and often requires open SSH ports, which increases the security attack surface.

The Solution

I designed a pipeline that automates the entire detection-to-remediation lifecycle:

• Monitoring & Detection: CloudWatch Alarms monitor instance health; if a service crashes, the alarm state change triggers EventBridge.
• The "Brain" (Lambda): A Python-based Lambda function validates the environment, checking for a Maintenance tag to ensure safety.
• Secure Remediation: The system triggers AWS Systems Manager (SSM) to run a custom Command Document, restarting the service securely over the AWS backbone without needing open SSH ports.
• Real-time Observability: Automated logs are sent via Discord Webhooks, providing the specific cause and duration of downtime.

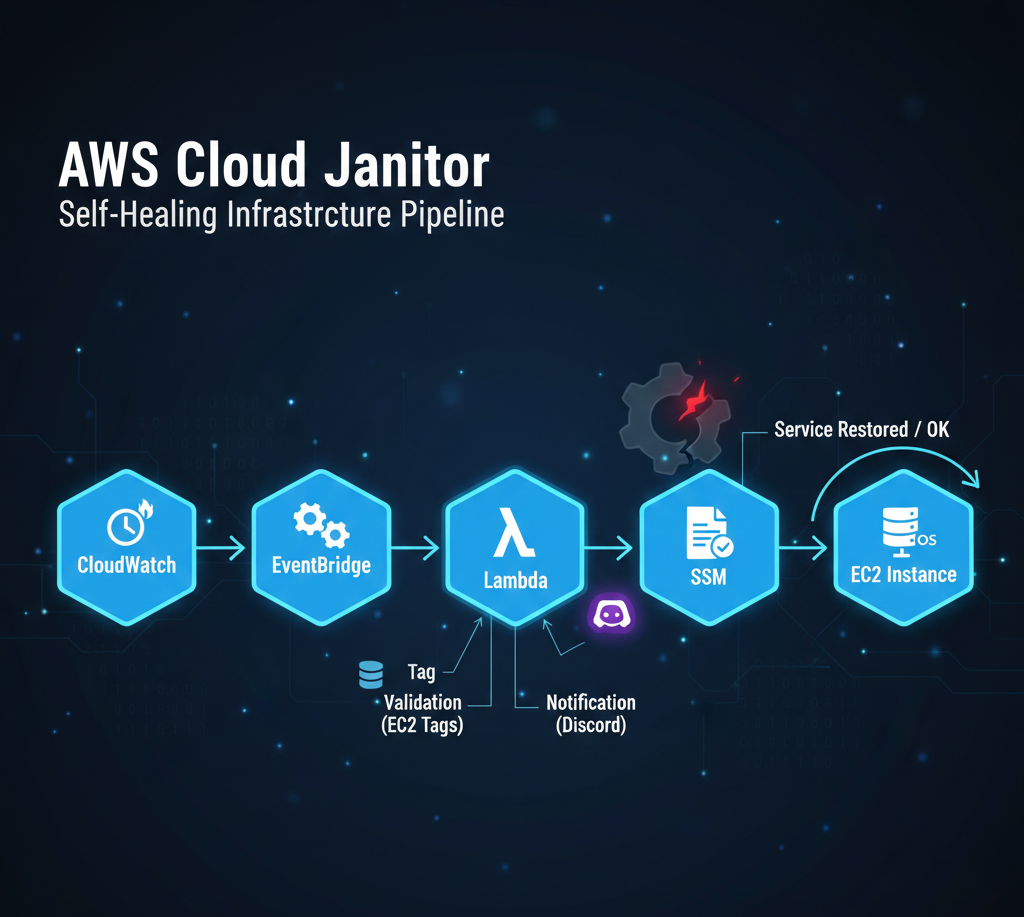

Architecture Diagram

Infrastructure as Code

Here is the Python logic that serves as the system's circuit breaker, combined with the Terraform trigger:

# IAM Policy for Lambda Hardening
resource "aws_iam_role_policy" "lambda_policy" {
  name = "lambda_janitor_permissions"
  role = aws_iam_role.lambda_role.id
  policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Action   = ["ssm:SendCommand", "ec2:DescribeTags"],
        Effect   = "Allow",
        Resource = "*"
      },
      {
        Action   = ["logs:CreateLogGroup", "logs:CreateLogStream", "logs:PutLogEvents"],
        Effect   = "Allow",
        Resource = "arn:aws:logs:*:*:*"
      }
    ]
  })
}

# Intelligence Layer Configuration
resource "aws_lambda_function" "janitor_brain" {
  function_name    = "CloudJanitor_Remediation_Brain"
  handler          = "lambda_function.lambda_handler"
  runtime          = "python3.11"

  environment {
    variables = {
      DISCORD_WEBHOOK_URL = var.discord_webhook_url
      SSM_DOCUMENT_NAME   = aws_ssm_document.remediate_nginx.name
    }
  }
}

# Cross-Service Permission
resource "aws_lambda_permission" "allow_cloudwatch" {
  statement_id  = "AllowExecutionFromCloudWatch"
  action        = "lambda:InvokeFunction"
  function_name = aws_lambda_function.janitor_brain.function_name
  principal     = "events.amazonaws.com"
  source_arn    = aws_cloudwatch_event_rule.remediation_rule.arn
}

import boto3
import os

def lambda_handler(event, context):
    ec2 = boto3.client('ec2')
    ssm = boto3.client('ssm')

    # Validation: Maintenance Check
    detail = event.get('detail', {})
    metrics = detail.get('configuration', {}).get('metrics', [{}])
    instance_id = metrics[0].get('metricStat', {}).get('metric', {}).get('dimensions', {}).get('InstanceId', 'Unknown')

    tags = ec2.describe_tags(Filters=[{'Name': 'resource-id', 'Values': [instance_id]}])['Tags']
    is_maintenance = any(t['Key'] == 'Maintenance' and t['Value'].lower() == 'true' for t in tags)

    if is_maintenance:
        return {"status": "skipped", "reason": "Maintenance Mode Active"}

    # Secure Remediation via SSM
    ssm.send_command(
        InstanceIds=[instance_id],
        DocumentName=os.environ.get('SSM_DOCUMENT_NAME')
    )

    return {"status": "success"}


The Results

Technologies Used

• Cloud Provider: AWS (Region: ap-southeast-1)
• Automation & IaC: Terraform, Python (Boto3), Bash, HCL.
• AWS Services: EC2, Lambda, EventBridge, CloudWatch, Systems Manager (SSM), IAM.
• Integrations: Discord API for real-time webhooks.
